Product Overview

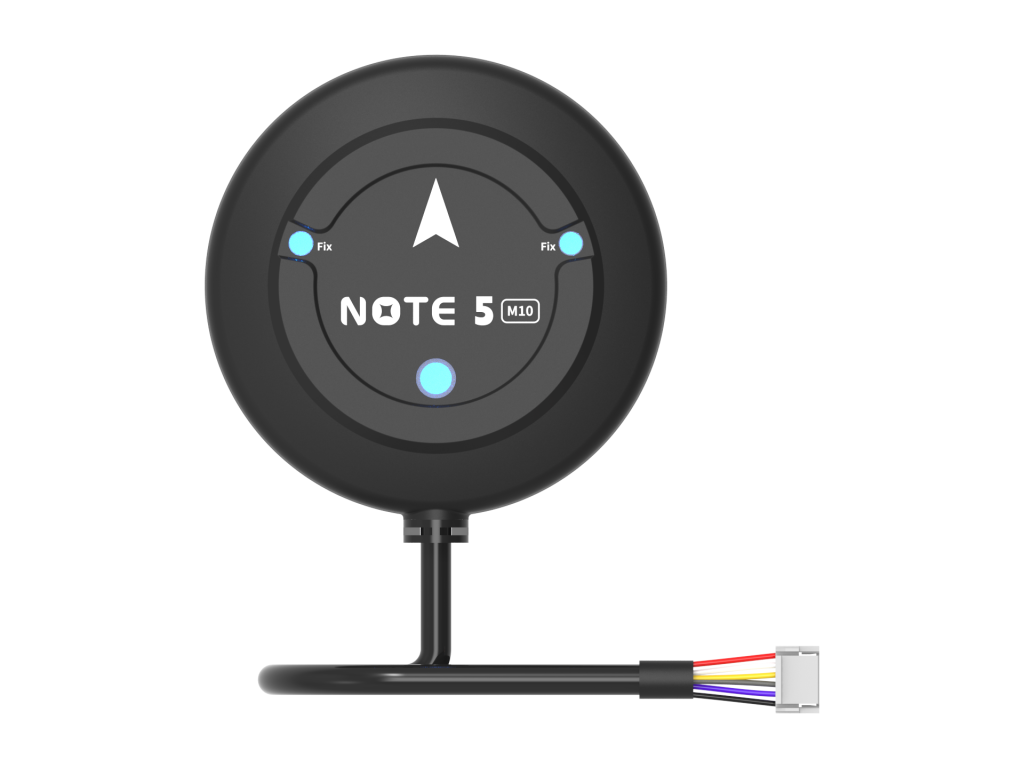

NOTE5 is a general GNSS module based on the latest UBLOX M10 module, with lower power consumption and stronger star search capabilities.
Product Features
- Used the UBLOX M10 positioning module;
- Concurrent reception of four constellations at same time (GPS, Galileo, GLONASS, BeiDou);
- Built-in electronic compass sensor chip, which can measure the magnetic heading of the drone;
- Built-in RGB three-color LED light, which can indicate the status information of the flight controller;
- Built-in coin cell battery, support hot start;
Procurement Method
Specification table
| Specification item | Parameter value |
|---|---|
| GNSS Chip | u-blox m10 |
| Frequency band | GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN |
| Satellite systems | GPS, Galileo, GLONASS, QZSS |
| Satellites | 32+ |
| Flight control platform | Support Ardupilot, PX4 |
| Operating voltage | 4.5~5.5V |
| Operating current | 50mA(5V) |
| Processor | Cortex-M4F, 240MHz |
| RTOS | Threadx |
| Positioning accuracy | 1.5m CEP |
| Speed accuracy | 0.05m/s |
| Communication Interface | DroneCAN |
| Buzzer | Support |
| RGB sensor | Support |
| Compass | IST8310 |
| Capture satellite | Cold start: ≤28s Hot start: ≤1s |
| Navigation rate | 5Hz(Default), 10Hz(Four GNSS), 25 Hz(Single GNSS) |
| Operating temperature | -40℃ to 85℃ |
| Physical Interface | JST GH1.25 6Pin/10Pin |
| Line length | 25cm |
| Size | 60mm(diameter) 16mm(height) |
| Weight | 45g |
